S:FLEX Delta Concrete

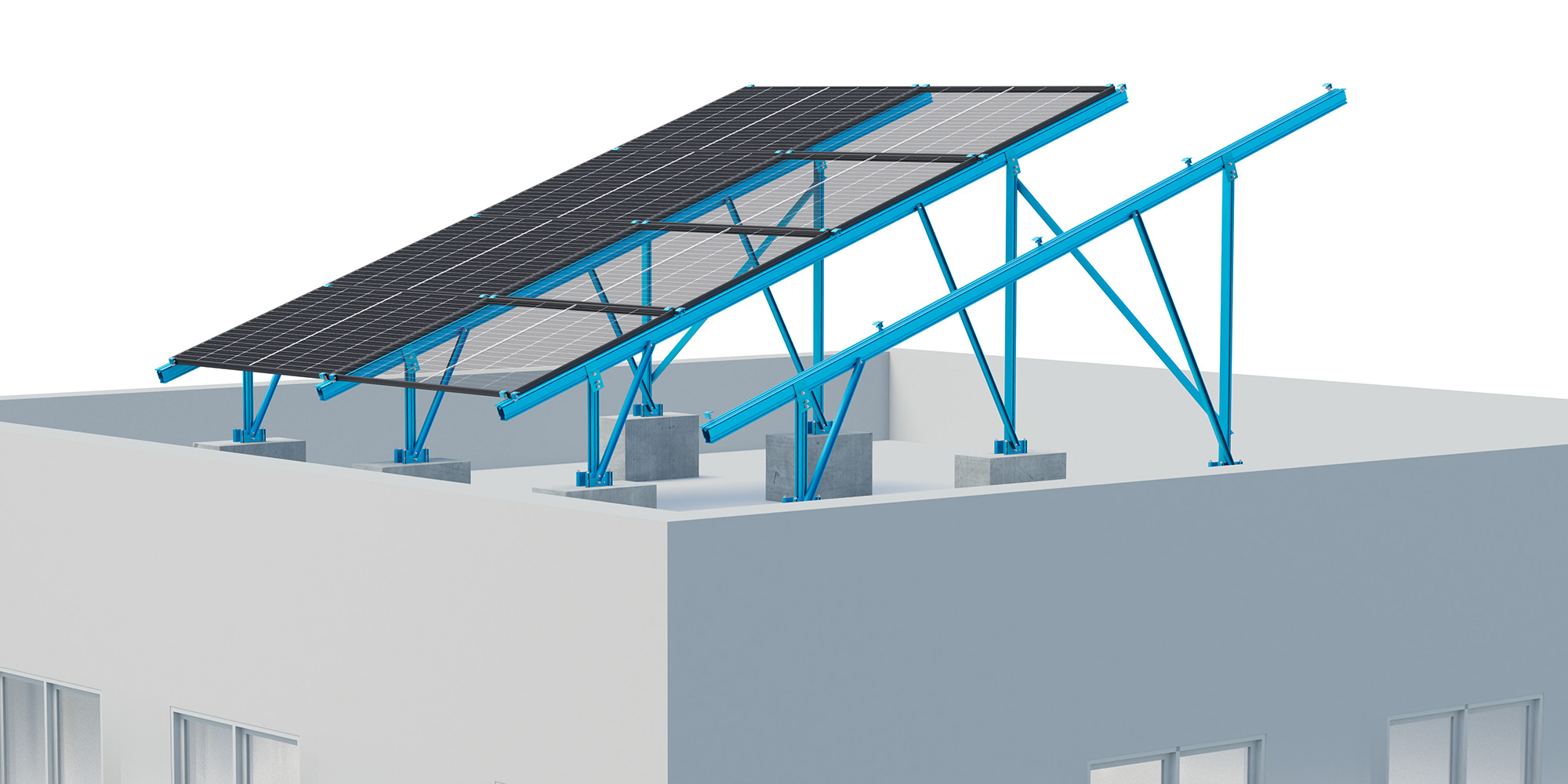

Designed for use on open spaces and roofs with concrete foundations

Data

  • Application:

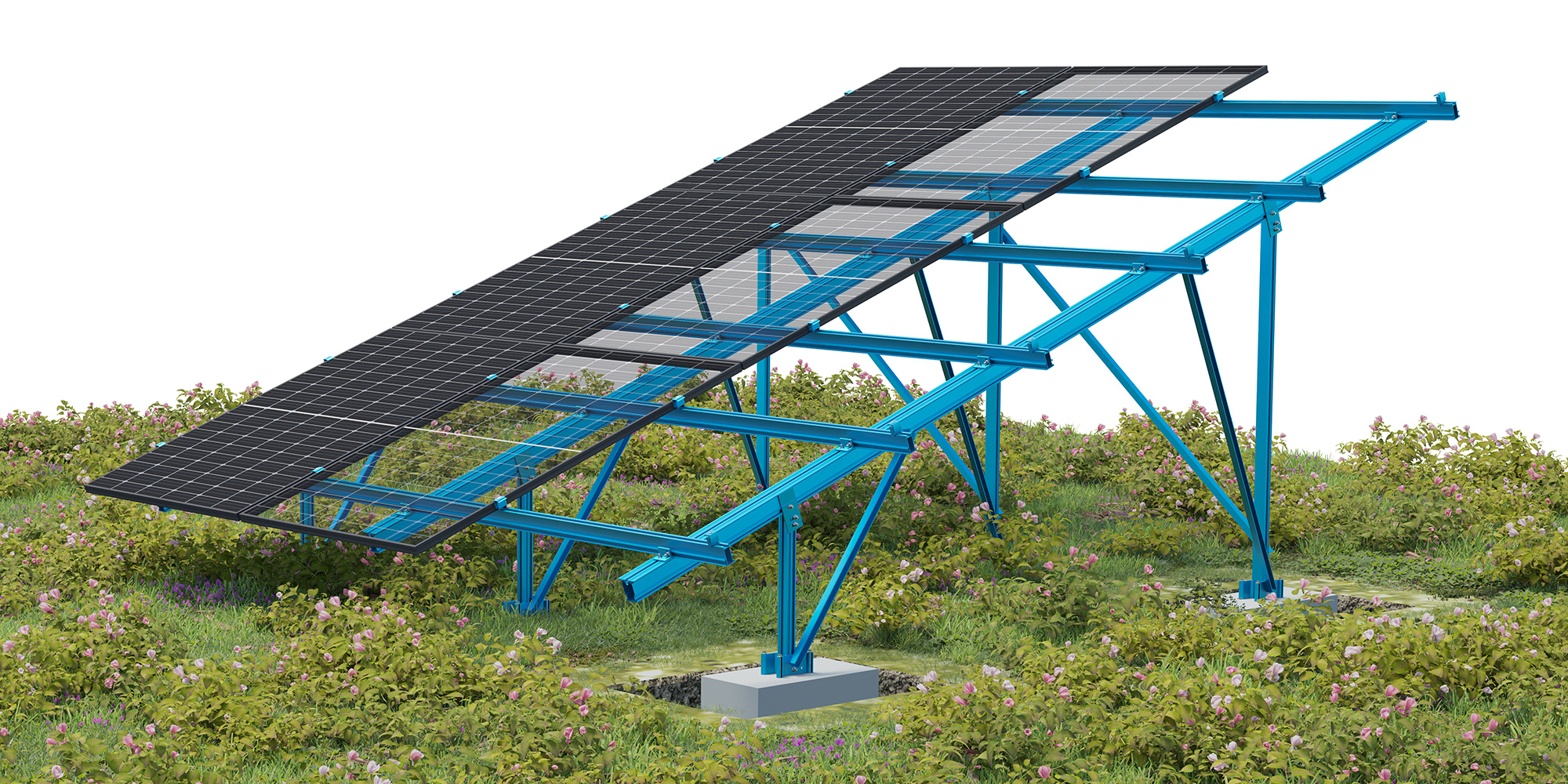

    Open spaces with concrete foundation, on site

  • Orientation:
    South and east-west installation

  • Connection:
    Concrete, screwed

  • Slope:
    N-S: any; E-W: module field 1° / terrain 10°

  • Module type:
    framed modules, frameless with additional cross rail, bifacial

  • Module orientation:
    landscape / portrait

  • Angle of attack:
    to 20°

  • Module field size:

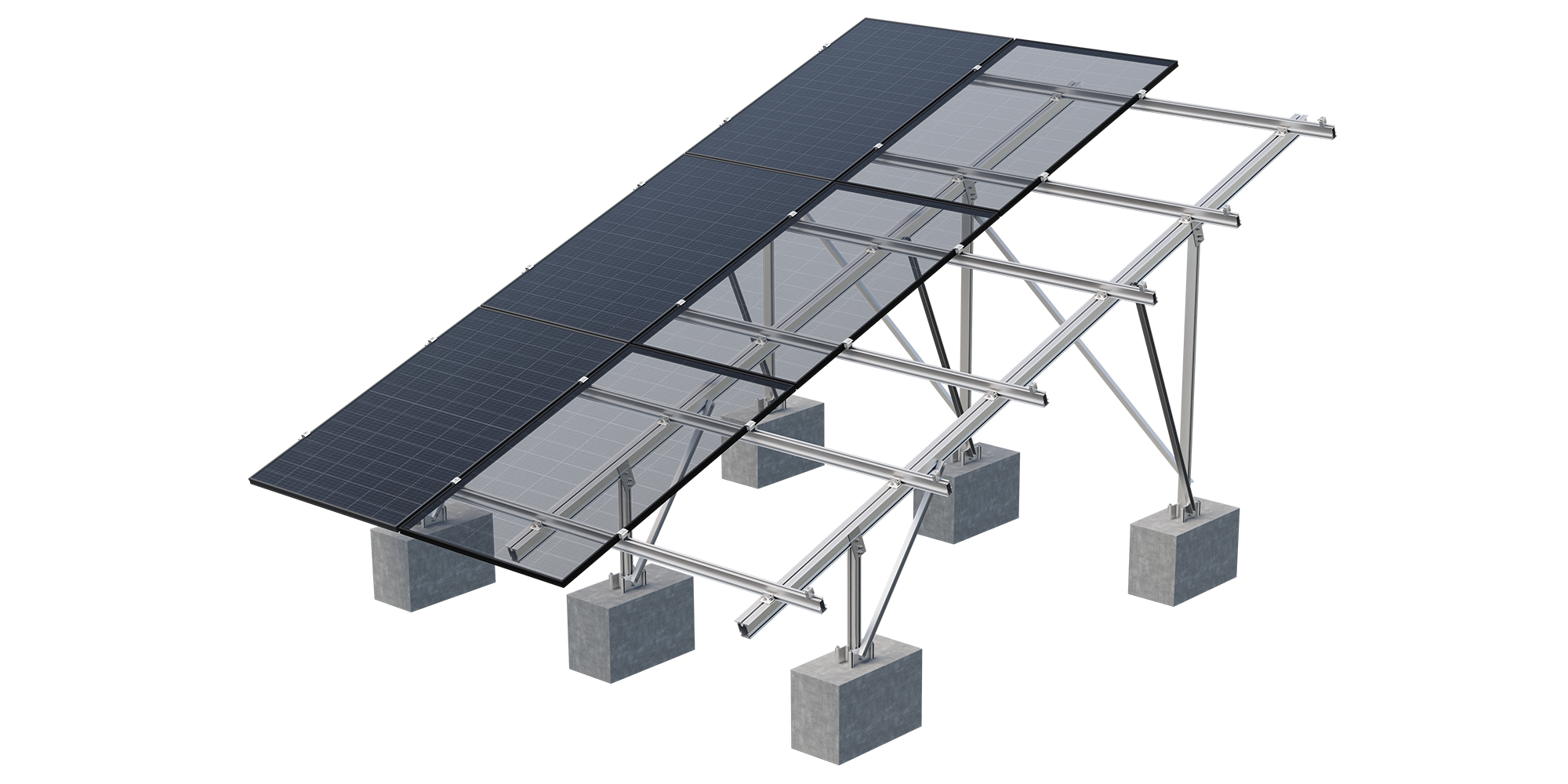

    12 x 4 modules landscape / 12 x 3 modules portrait

Advantages

  • Designed for open spaces with concrete foundations

  • Lightweight, material-saving design

  • Obstacles can be built over

  • No drilling of aluminum necessary on site

Components

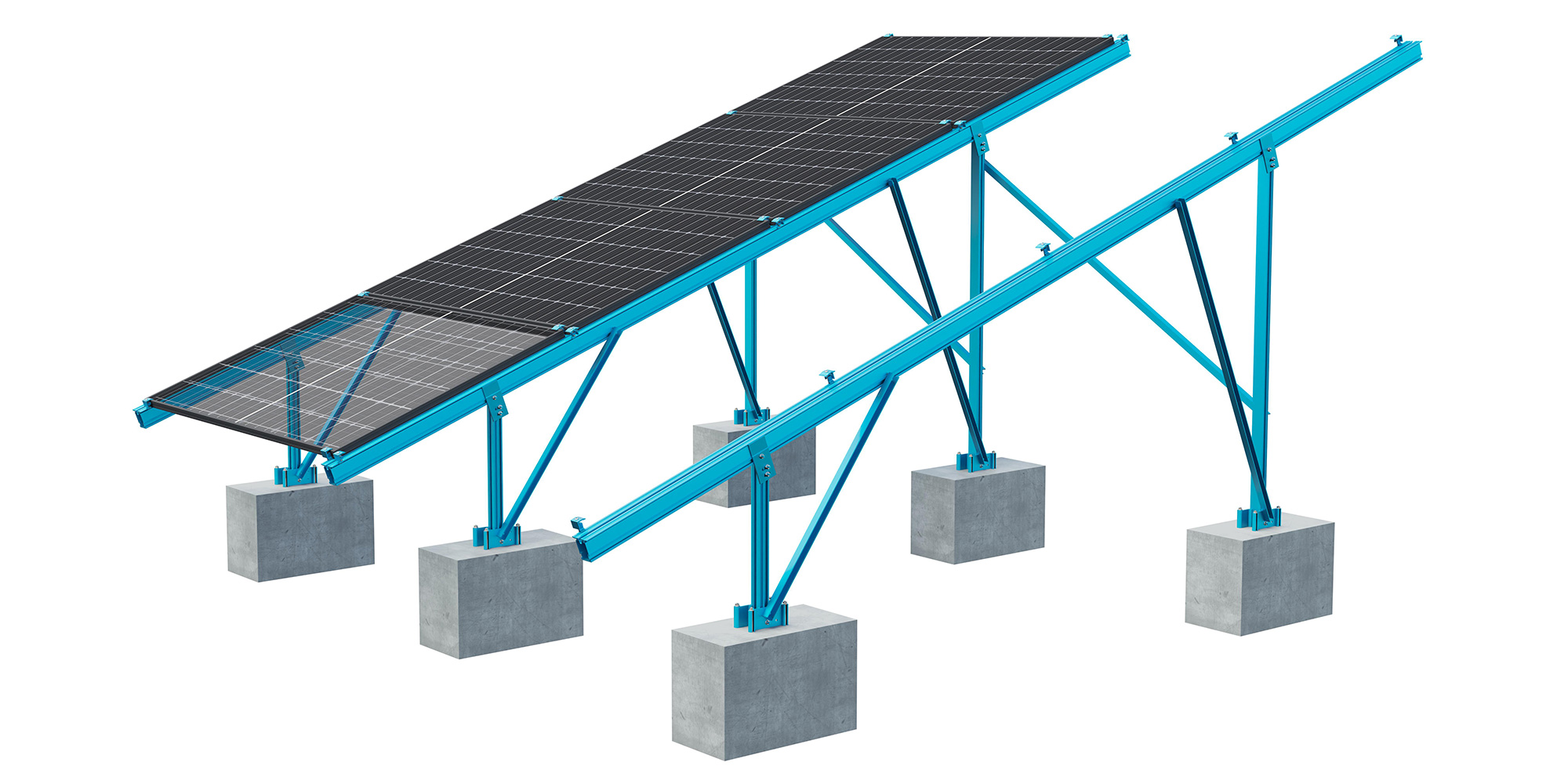

A flexible frame solution for PV systems on concrete surfaces

The S:FLEX Delta Concrete open-air system is a modular and flexible system with a material-efficient design and few components that can be planned and installed quickly. No drilling of aluminum or steel is necessary on site. Power optimizers and (micro) inverters can be easily attached to the frame.
