S:FLEX Flat Direct

The system for foil, bitumen and sandwich roofs

Data

  • Application:
    Pitched roof with foil/bitumen covering, sandwich roofs; other roof coverings on request
  • Connection:
    aerodynamic, parallel to the roof, penetration-free, additional ballasting

  • Roof pitch:
    to 30°

  • Module type:
    framed modules

  • Module orientation:
    upright

  • Mounting type:
    two-layer

Advantages

  • Non-penetrative installation possible

  • Minimized additional ballast thanks to optimized aerodynamics

  • Ideal for east-west exposure such as pitched roofs on both sides

  • Has lightning current carrying capacity

  • Optional roof connection points extend the range of applications

Components

The low-ballast and penetration-free system for a wide variety of roof shapes

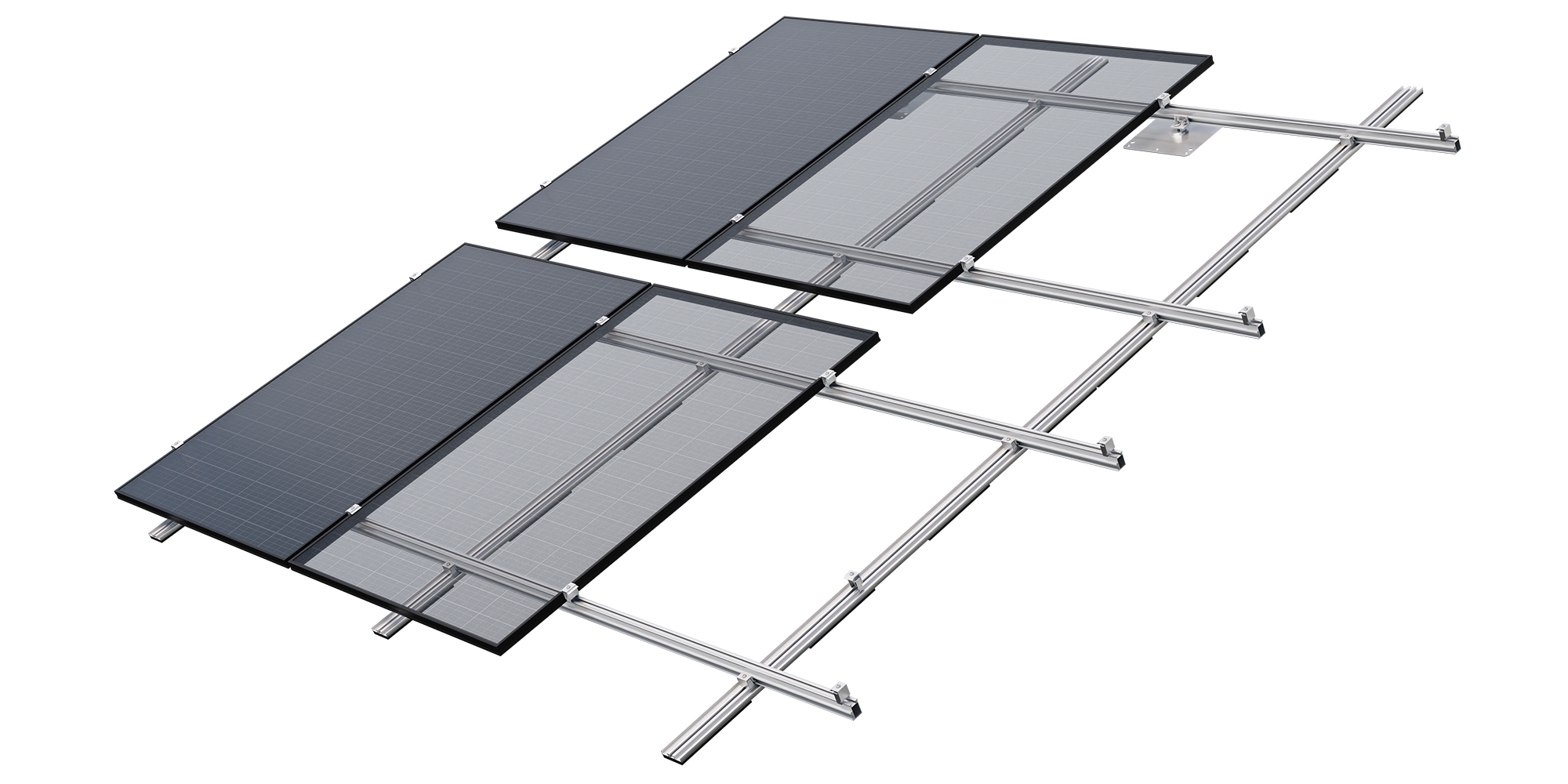

S:FLEX Flat Direct for foil and bitumen roofsWith the Flat Direct, S:FLEX offers an innovative PV mounting solution for roofs with foil or bitumen roofing as well as sandwich roofs. The aerodynamic system is therefore particularly suitable for the roofs of commercial buildings with low load-bearing reserves.

The S:FLEX Flat Direct can be used on a wide variety of roof shapes with a pitch of up to 30°: Gabled, monopitch or even butterfly roofs, covered on one or both sides, with framed modules on edge.

Pre-bonded foam pads with high coefficients of friction and optimum material compatibility under the aluminium ground rails provide a secure hold with minimized ballast, while the system design with the wide air gaps between the modules not only ensures the best possible rear ventilation, but also creates a suction effect in the direction of the roof. Depending on the roof, special ridge angle connectors, counterweights or mechanical couplings provide even more security when anchoring. Any necessary ballast stones are clamped to the ground rails to prevent them from slipping.

Like all S:FLEX mounting systems, the Flat Direct also allows quick assembly thanks to a high degree of pre-assembly and a proven modular system with pre-assembled middle and end brackets for all frame heights with simple external click technology.
