S:FLEX GreenLight

PV rack system for green roofs

Data

  • Application:
    Green roof (intensive and extensive), gravel roof

  • Orientation:
    South and east-west installation

  • Connection:
    without roof penetration, ballasted

  • Roof pitch:
    to 5°

  • Module type:
    framed modules

  • Module orientation:
    upright/transverse

  • Angle of attack:
    10° / 15° / 20°

  • Module field size:
    min. two modules

Advantages

  • No structural roof connection necessary.

  • Securing the position by ballasting on base plates (granulate/gravel/ballast stones)

  • High water storage volume

  • Suitable for all standard module sizes

  • Integration of fall protection optional

Components

Especially for the combination of photovoltaics and green roofs

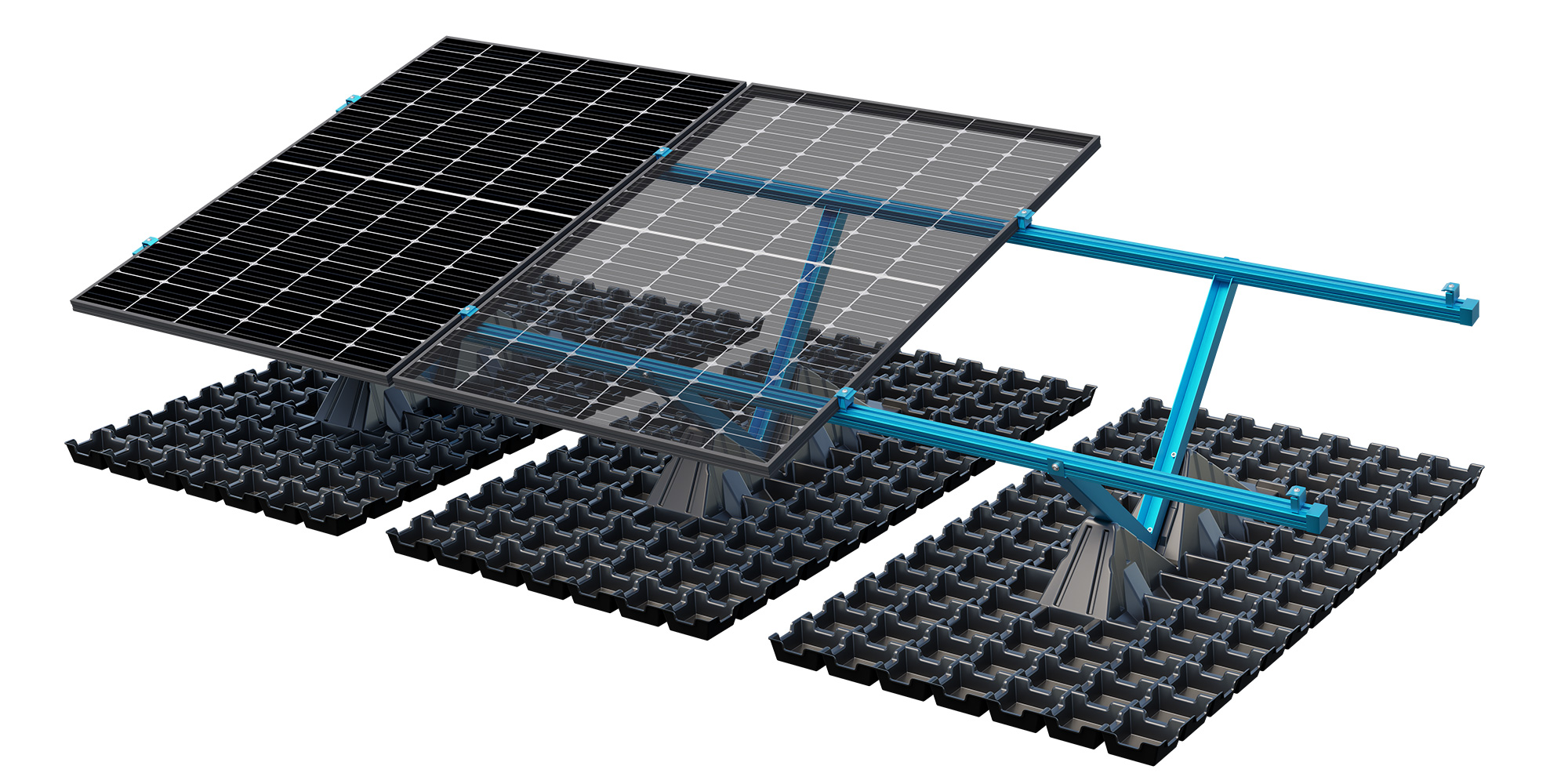

The S:FLEX GreenLight system with substrate ballasting and integrated water storage is the quick and easy solution for penetration-free extensive green roofs. The high distance between the modules and the substrate surface counteracts heat build-up and prevents yield losses due to shading of the PV modules by the plants. We recommend the butterfly version with a raised structure between the rows for optimum roof area utilization and easy care, inspection and maintenance.
