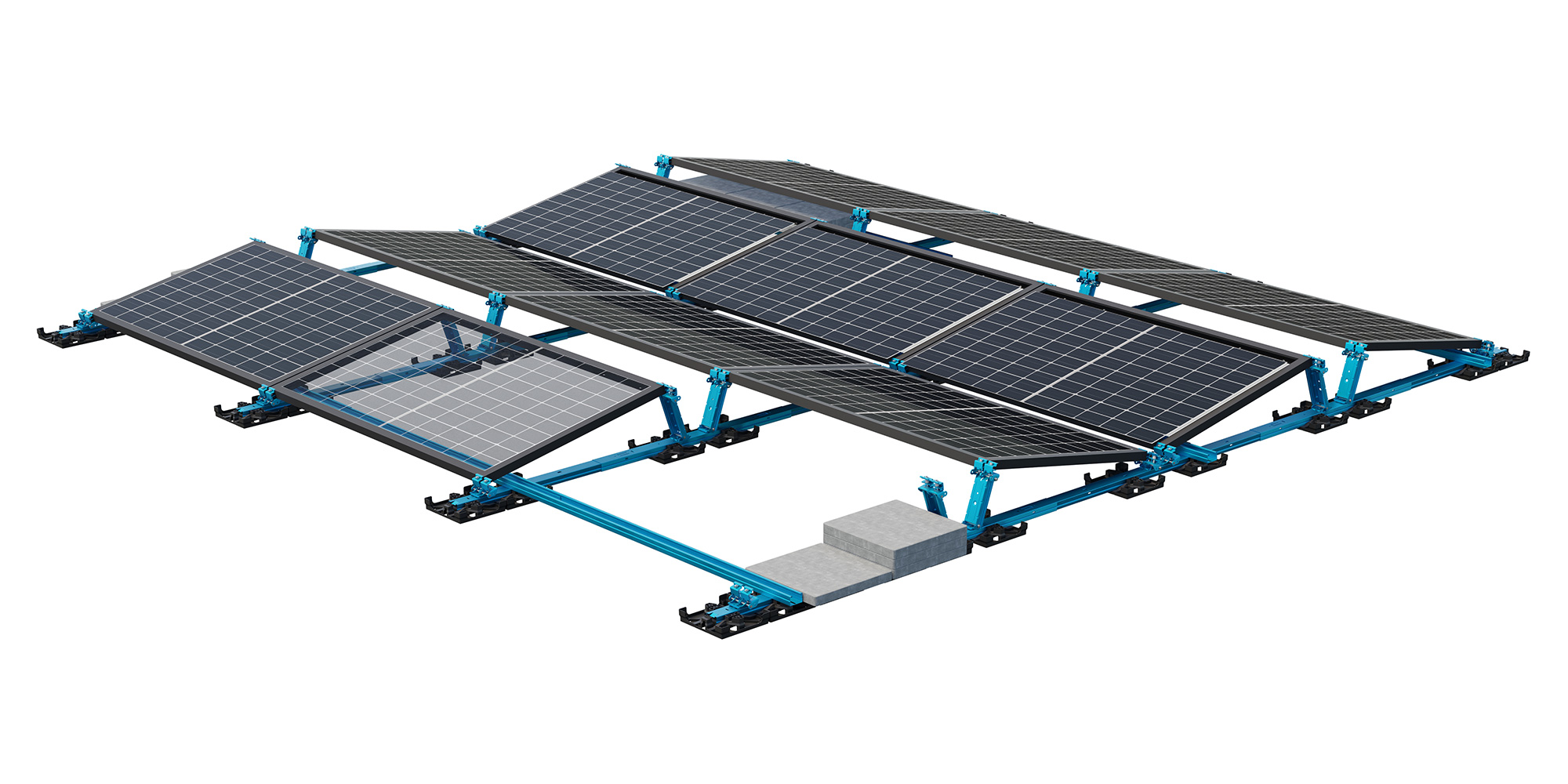

S:FLEX LEICHTmount SNAP

Aerodynamic east/west flat roof system

Data

  • Application:
    Flat roof with foil, bitumen, gravel, greenery, concrete, open spaces

  • Orientation:
    East – West

  • Connection:
    Possible without penetration (roof connection according to flat roof guidelines)

  • Roof pitch:
    to 10°

  • Module size (LxW):
    1600-2500 mm 990-1230 mm
    Height: 30-40 mm

  • Angle of attack:
    10°

  • Module field size:
    max. 30 x 30 m

Advantages

  • Installation possible without roof penetration

  • Minimized additional ballast thanks to optimized aerodynamics

  • Optimum load distribution via floor rails with base plates

  • Roof edge and corner areas can be used

  • Low surface load: incl. module / without ballast from 12.5 kg/m²
