S:FLEX Standing seam clamps

The solution for pitched roofs with seam roofing – without roof penetration

Data

  • Application:
    Standing seam clamp 2.1:
    Seam coverings such as standing seam, round seam, angled seam
    Standing seam clamp DCO and CL:
    Industrial metal system roofs
    such as Domitec/GBS, Klip-Lok 700, RibRoof 465

  • Connection:
    penetration-free

  • Roof pitch:
    to 75°

  • Module type:
    framed modules

  • Module orientation:
    upright / horizontal (with clamping on the short side)

  • Mounting type:
    Direct clamping

Advantages

  • Direct mounting of the modules on the standing seam clamps

  • No rails necessary

  • Low material/storage/assembly costs

  • Quick assembly

  • No roof penetrations

Components

Simple and economical solution for mounting PV modules on pitched roofs with rebated roofing

Framed modules can be installed quickly, safely and cost-effectively directly onto the roof cladding using the standing seam clamp – with proven click technology and without penetrating the roof, minimizing transport costs and storage space requirements.

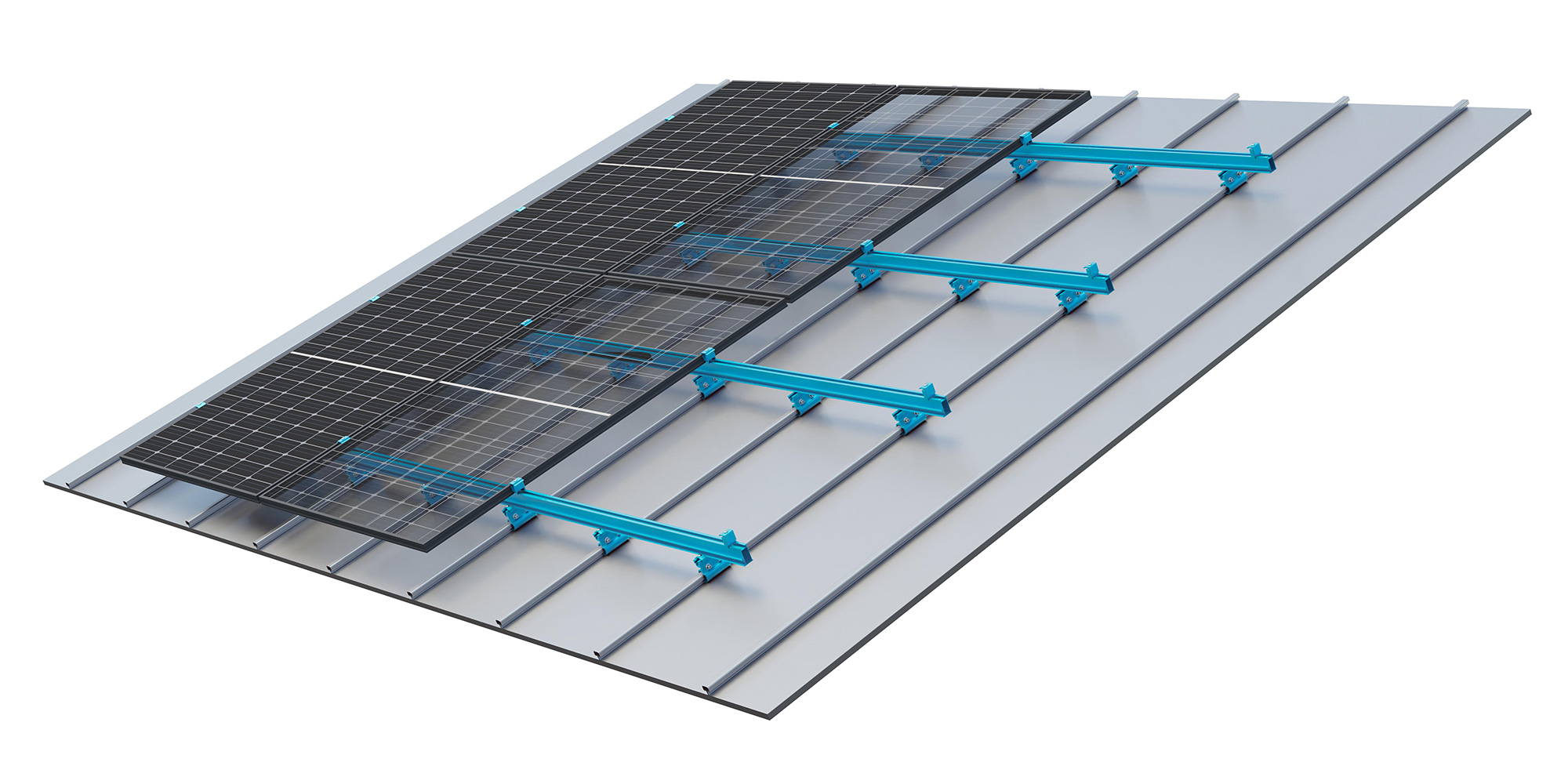

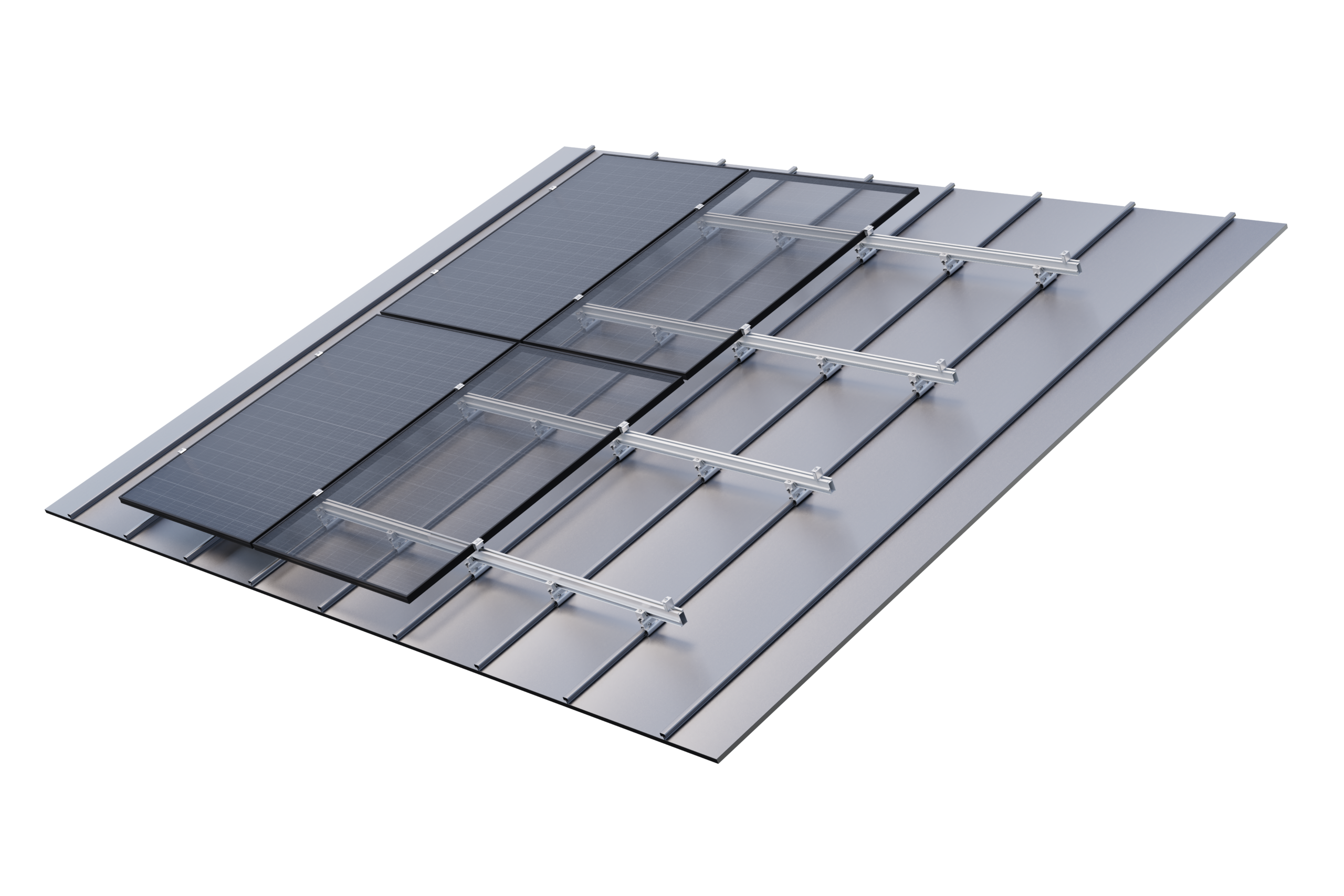

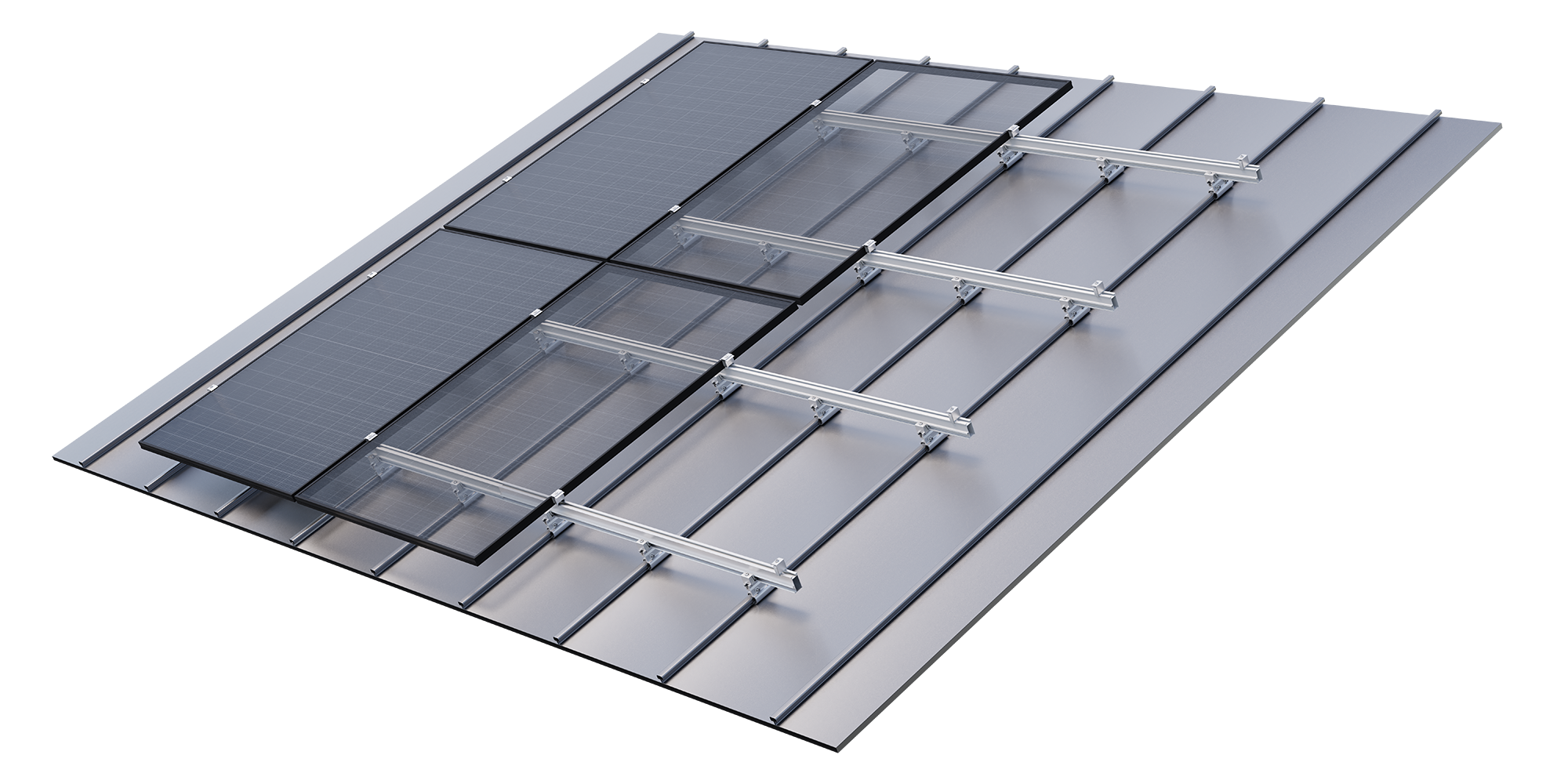

For roof coverings that do not permit direct module installation, the standing seam clamp can also be used in combination with S:FLEX rails and cross-rail connectors.
